WARHEADS FOR 122 mm ROCKETS : (details)
- HE ( TGAF - 5, COMPOSITION B ) ;
- PREFORMED ELEMENTS .
FUZES FOR 122 mm ROCKETS : (details)
- MULTIPLE FUNCTIONS FUZE MFF - 2T ;
- MRV - U ;
- MRV - UBM FOR EXTENDED RANGE ROCKETS ;
122 mm ARTILERY AMMUNITION : (details)
- 122 mm ILLUMINATING ROUND FOR THE 1938 MODEL HOWITZER ;
- 122 mm ILLUMINATING ROUND FOR THE D - 30 ;
- 122 mm HE ROUND FOR THE 1938 MODEL HOWITZER ;
- 122 mm HE ROUND FOR THE D - 30 .
FUZES FOR ARTILERY : (details)
- FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
- FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS .
ILLUMINATING BOMBS : (details)
- 81 / 82 mm ILLUMINATING BOMBS with time fuze T 1 or electronic time fuze ETF 1MT ;
- 120 mm ILLUMINATING BOMBS with time fuze T 1 or electronic time fuze ETF 1MT ;
- 60 mm ILLUMINATING BOMBS with time fuze T 1 or electronic time fuze ETF 1MT or time fuze PTF-3T ;
- 81 / 82 mm ILLUMINATING BOMBS with superior performance (research - development) .
FUZES FOR ILLUMINATING BOMBS : (details)
- TIME FUZE T 1 for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ; ;
- ELECTRONIC TIME FUZE ETF 1MT for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ;
- TIME FUZE PTF-3T for ammunition 60 mm with illuminating bomb (research - development) ;
SMOKE AND MASKING SMOKE BOMBS : (details)
- 81 / 82 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
- 120 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
- 60 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) .
FUZE FOR SMOKE AND MASKING SMOKE BOMBS : (details)
- IMPACT FUZE PDF-4T for ammunition 60 mm, 81 / 82 mm, 120 mm with explosive or smoke and masking bomb (research - development) .
GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS : (details)
- 76 mm IR / RP SMOKE GRENADE ( Collaboration with DIEHL Defence Germany ) ;
- Ammunition 40X47 mm with EXPLOSIVE GRENADE with self-destruction and ammunition 40X47 mm with INERT GRENADE;
- IGNITION CAPS ;
- TRACERS ;
- TORCHES: 60 mm, 81 / 82 mm, 120 mm, 122 mm ;
- TORCHES IR ;
- PRIMER SCREWS ;
- 1lb AND 1/2 LB TNT BOOSTERS .
|

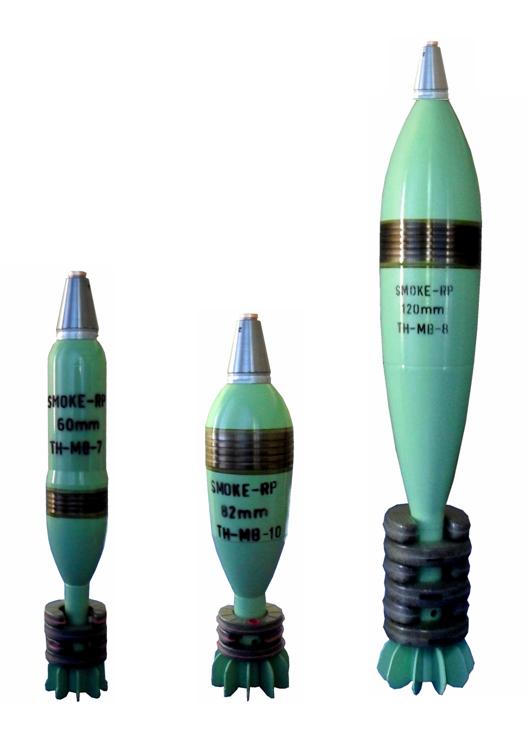

SMOKE AND MASKING SMOKE BOMBS
( research - development ) NEW
- AMMUNITION CAL. 60, 81 / 82 AND 120 mm WITH SMOKE MASKING BOMBS WITH FUZE PDF - 4T
DESTINATION :
THE AMMUNITION IS MEANT TO PROVIDE MASKING AND TROOPS PROTECTION AGAINST WEAPON SYSTEMS EQUIPPED WITH DETECTION AND SHOT SYSTEMS WITHIN VISIBLE AND INFRARED SPECTRUM, UNDER ALL CLIMATE, MECHANICAL AND ELECTRICAL ENVIRONMENT MENTIONED IN NATIONAL AND NATO REFERENCE STANDARDS. THE SMOKE-MASKING BOMB UNIT IS MEANT TO GENERATE SMOKE SCREEN WITHIN THE SPECTRAL FIELD OF THE VISIBLE RADIATION AND INFRARED: CLOSE, AVERAGE AND FAR. IN ADDITION, THE AMMUNITION CAN BE USED FOR MARKING TOO. THE AMMUNITION IS EQUIPPED WITH IMPACT FUZE PDF 4T OR SIMILAR.
TECHNICAL DATA :
- CALIBER 60 mm
LENGTH WITH FUZE PDF - 4T : 386 mm ;
LENGTH WITHOUT FUZE : 335 mm ;
MAXIMUM RANGE : OVER 3000 m ;
MINIMUM RANGE : 190 m ;
MOKE CHARGE WEIGHT BASED ON RED PHOSPHOR : 0.400 Kg .
- CALIBER 81 / 82 mm
LENGTH WITH FUZE PDF - 4T : 357.7...363.6 mm ;
LENGTH WITHOUT FUZE : 291.8...295 mm ;
MASKING SMOKE MIXTURE WEIGHT : 420 g ;
WEIGHT ( WITH FUZE, WITHOUT FILLER ) : 3.49 Kg ;
PROPULSION SYSTEM : ROUND + 3 ADDITIONAL FILLER ( FULL FILLER ) ;
MANHOLE SPEED : 199 m/s ;
MAXIMUM RANGE : 3100 m ;
MINIMUM RANGE : 220 m ;
MASKING SMOKE COLOUR : WHITE GREY ;
RADIATION SPECTRE COVERED BY MASKING : VISIBLE AND INFRARED ;
SMOKING TIME : MIN . 60 s ( FOR WIND SPEED < 2m/s ) ;
MASKING ACTION TIME : VISIBLE MIN . 60 s , INFRARED MIN . 30 s .
- CALIBER 120 mm
LENGTH WITH FUZE PDF - 4T : 726.4...735.6 mm ;
LENGTH WITHOUT FUZE : 661.6 ... 667 mm ;
SMOKE CHARGE WEIGHT BASED ON RED PHOSPHOR : 1.5 Kg ;
WEIGH ( WITH FUZE WITHOUT LAUNCHING CHARGE ) : 16.44 Kg ;
LAUNCHING CHARGE : BASIC CHARGE + 6 ADDITIONAL CHARGE ;
INITIAL SPEED : 275 m/s (MAX.) ;
MAXIMUM RANGE : 5500 m ;
MINIMUM RANGE : 1060 m ;
SMOKING TIME : 120 SEC. (APPROX.) ;
OPERATION - STORAGE TEMPERATURE : 400C χ +500C .
|
|
